Type what a character should do. Get an animation in Blender.

MotionForge runs NVIDIA's ARDY motion model next to Blender and keys the result onto a rig you can edit like any other. You can also steer the character live, pin poses it has to hit, move the motion onto your own character, and hand it straight to Cascadeur.

Please subscribe to Cascadeur via the link below. Thank you.

https://cascadeur.com/?ref=chamiseul

New in 0.2.0 — Send to Cascadeur. A character, or just its animation, goes over to Cascadeur without an FBX round trip by hand. See Sending it to Cascadeur.

Also new — the trip home. Receive from Cascadeur brings the work back onto the rig you sent, at the speed it left or at any other speed you pick. Rigs built out of several skeletons, such as the Team Fortress 2 Trifecta rigs, are merged into one on the way over so hats, pouches and weapons arrive attached, and Cascadeur's Rig Mode is filled in for you. See Bringing it back.

Setup, once

1. Install the engine. Double-click install.bat. It makes a .venv folder here and puts everything in it — nothing else on the machine changes. It needs Python 3.12, Git, an NVIDIA GPU, and about 10 GB of disk.

2. Install the add-on. In Blender: Edit ▸ Preferences ▸ Add-ons ▸ Install, pick the motionforge folder, tick it on.

3. Point it at the engine. Still in the add-on's preferences, set ARDY Python to the .venv\Scripts\python.exe that install.bat printed when it finished.

4. Get access to the text encoder. ARDY reads your prompt with a Meta Llama model that requires accepting a licence:

• accept it at huggingface.co/meta-llama/Meta-Llama-3-8B-Instruct
• run huggingface-cli login in a terminal and paste your token

Press N in the 3D viewport and the MotionForge tab is there.

The big picture, in 30 seconds

MotionForge is two pieces working together:

• The engine — NVIDIA's ARDY model. It turns a sentence into animation frames.
• The add-on — this one, running inside Blender. It builds a rig, plays the frames on it, lets you steer and pin poses, and copies the result onto your own character.

Every animation first lands on a source rig that MotionForge builds (the Create Rig button). From there you can copy it onto any other armature — called a target rig — so the motion plays on your own character.

The five panels

Press N in the 3D viewport and a MotionForge tab appears in the right-hand sidebar. It holds five panels, in the order you will use them.

1. MotionForge — connect and make a rig

2. Text to Motion — turn words into animation

3. Live Path — steer while it plays

4. Retarget — put the motion on your own character

5. Send to Cascadeur — hand the motion over

Always visible; it tells you what it needs rather than hiding until the right thing is selected.

See Sending it to Cascadeur for the order these have to be used in.

Source rig vs. target rig, plainly

• Source rig = the armature MotionForge makes and animates. You never have to rig it; the model already knows its skeleton.
• Target rig = any other armature you want the motion on. It can be an Unreal Engine mannequin, a Mixamo character, a Rigify rig, an SMPL-X body — anything with reasonably named bones that matches one of the presets.

The flow is always the same: generate on a source → retarget onto a target.

A beginner's recipe, end to end

1. Install and connect (see Setup, once above). Wait for Ready.
2. Create Rig — press it. An armature appears.
3. Add a take with +, type what you want, press Generate Take.
4. Scrub the timeline to watch it. The rig moves.
5. To put it on your own character: open Retarget, pick your character as Target, choose its Rig Type, press Retarget.
6. To steer or pin specific moments, add waypoints or pose keys and generate again.

That is the whole loop. Everything else in this guide makes those six steps better — longer performances, live steering, and copying to many characters.

Words you'll see (glossary)

Your first animation

Connect ARDY. The first time, this downloads several GB. Wait for Ready.

Create Rig. An armature appears — this is the skeleton the model animates.

Press +, write what should happen, press Generate Take.

a person walks forward
a person sits down on a chair
a person waves with the right hand
a person jumps over something

Plain sentences work best. "a person" is how the model was taught, so start there. A few seconds later the rig is animated and you can scrub the timeline.

Takes

A take is one shot: its own prompt, its own length, its own Action.

☑ a person walks forward       100f ▶
☑ a person sits down            60f ▶
☐ a person waves                 ○

• + and − add and remove takes
• the checkbox decides whether Generate All includes it
• ▶ puts that take's animation back on the rig
• ○ means it has not been generated yet

Generate Take does the selected one. Generate All does every ticked one.

Chaining takes

Tick the 🔗 on a take and it starts exactly where the take above ended — same spot, same facing, same pose. Chain several and Generate All gives you one continuous performance built out of separate instructions.

Take 1 has nothing before it, so it cannot be chained.

Steering it

Waypoints — go through here at this time

Move the 3D cursor, press +, set the frame. The character will be at that spot on that frame. Add more for a route.

Turn on Face Waypoint Direction and the empty's green arrow also decides which way the character looks when it gets there.

Pose keys — look like this on this frame

Go to the frame you want, press +, then pose.

Each key gets its own rig — a copy of the generated one named cskel27_001, cskel27_002, and so on — and + drops you straight into pose mode on it. Pose that copy, not the animated rig. It carries no animation of its own, so what you pose stays put no matter how much you scrub.

Add as many as you like: frame 30, frame 60, frame 100. Press Generate and the take is made to pass through all of them in order — A to B to C.

• Whole Body holds every joint. That frame comes out looking like what you posed.
• Parts holds only the hands and feet you tick, and lets the model invent the rest of the body around them.

Mix them freely: pin the first frame exactly, and only a hand later on.

IK On puts hand and foot handles on the selected key's rig so you can pose it by dragging instead of rotating 27 bones:

• Blue cubes on the hands and feet — drag one and the limb follows.
• Yellow pyramids at the elbows and knees — these are pole targets. Move one to say which way the joint bends.
• IK Off bakes what IK is showing onto the bones and removes the handles. The pose stays exactly as it looked.

Turning IK on never moves the pose: the handles are built where the limbs already stand, and each pole angle is measured from the bend the pose already has. If a limb jumps when IK comes on, that is a bug, not you.

The poses are read when you press Generate, not when you press +. So adjust a pose and Generate again — no need to re-add the key. Pose \<name> in the panel jumps back to a key's frame and selects its rig for editing; removing a key deletes its rig with it.

Moving a pose rig moves where the character will be on that frame, since the root position is part of the pose. Leave it where it is unless you mean that.

Keep "Reduce Foot Skating" on. It is also the step that lands the motion exactly on your waypoints and pose keys. With it off they become suggestions.

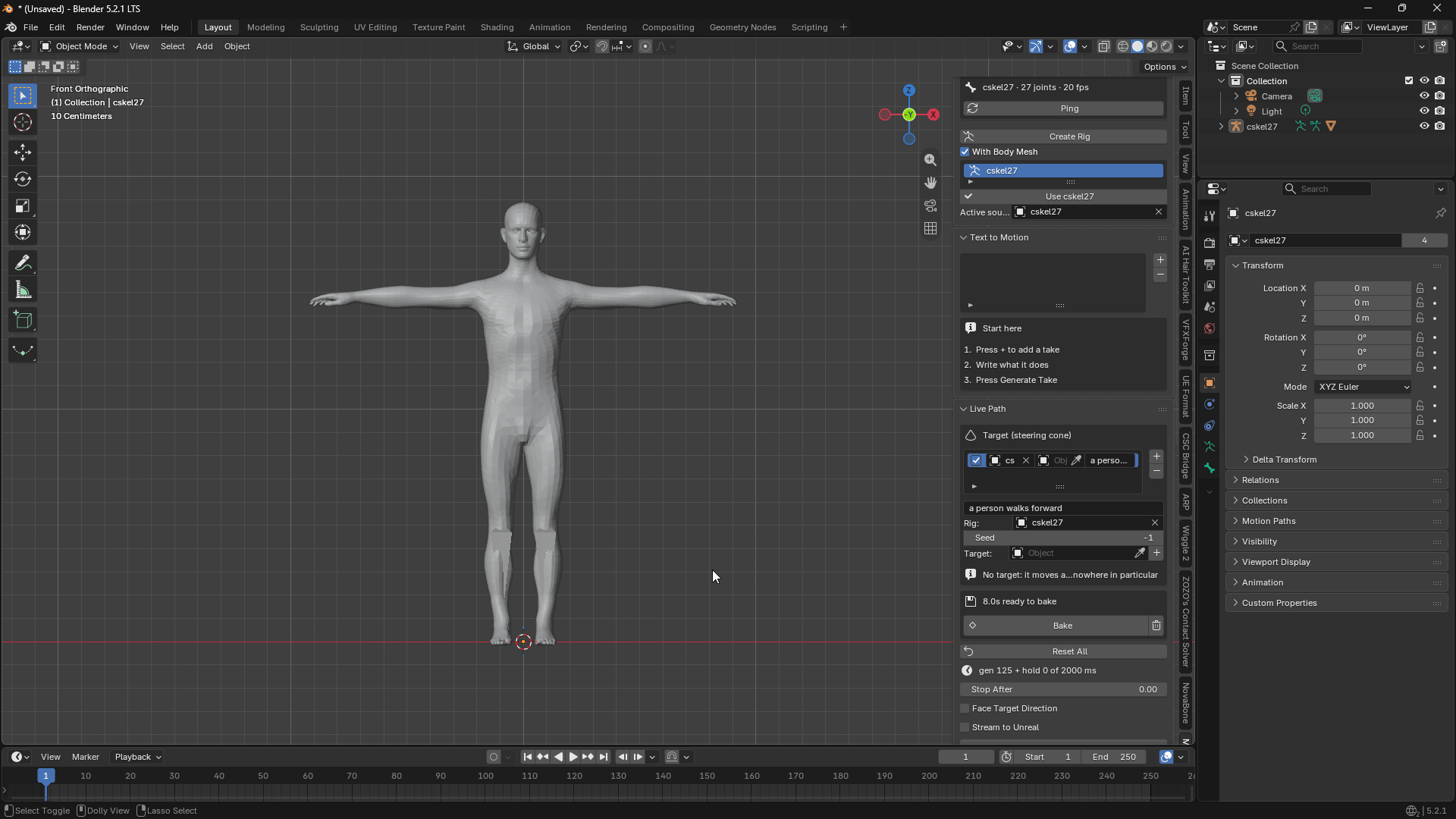

Live Path — steer while it plays

This is the fun one.

1. Open Live Path and press +. A row appears — give it a prompt and pick the rig it drives.
2. Press + beside Target. A cone appears — its point is the direction the character will face.
3. Press Start Live. The character begins moving.
4. Drag the cone. The character walks toward it.

Press Esc or Stop to end it. Nothing is keyed until you Bake.

Animate the cone instead of dragging it. Keyframe it, parent it to a curve, drive it however you like — MotionForge just reads where it is each time it needs more motion. That gives you a repeatable path you can re-run with different prompts or seeds, and exact control over timing.

Tick Face Target Direction and the cone's rotation steers facing too, so the character can walk backwards, sidestep, or circle something while watching it.

Several characters at once. Add a row per character and press Start Live once. Each walks to its own cone, on its own prompt. They can stand anywhere and face any direction — a target is read from where that rig stands, not in world coordinates.

Stop After ends the run on its own after a set number of seconds. Leave it at 0 and it runs until you stop it; there is no hidden limit, and the room ahead grows as the take does.

What to expect

• Steering shows up about 2 seconds later. What you are watching was already decided. The Core, short horizon model reacts in 0.4 s instead, at some cost in quality.
• Keep the cone roughly a walk ahead of the character. Put it too far and the character breaks into a run; jerk it around and the footwork gets messy.
• Live skips the foot-skating pass. If a live path is exactly what you wanted, rebuild it with waypoints for the cleaner result.

If it cannot keep up, the panel says where the time goes:

12.4s generated, 1.8s ahead
gen 130 + hold 0 of 2000 ms

The last number is how long one window plays for. As long as the first two add up to less than it, the loop is keeping ahead.

• gen is generation. On an RTX 5080 one character costs about 130 ms and four cost about 490 ms, because the characters are generated one after another. If gen is in the thousands, the text encoder is sitting on your graphics card — see Why the text encoder runs on the CPU below.
• hold is what it costs to keep the window in memory, which is nothing.

MotionForge generates further ahead when a cycle takes longer, so adding characters does not make it stutter. It only asks for more room when it needs it, because running further ahead makes dragging the cone slower to show up.

Bake

Live never writes keys as it runs. Keying redraws the viewport for every frame of every window - 658 ms of a 2000 ms budget in a real editor - so the take is held in memory instead and the loop stays clear.

When you stop, the panel says how many seconds are waiting and a Bake button writes the whole take in one go. It is there whenever something is waiting, so you can generate as long as you like and decide afterwards; the rig does not move until you press it. Discard throws the take away.

Roadmap: SMPL-X bodies

MotionForge makes motion but has no body. SMPL-X is the opposite — a parametric human body (10 shape numbers, 55 joints) with the deformation research behind it. Meshcapade's Blender add-on builds one in Blender, and Perceiving Systems' Unreal plugin computes its pose-corrective blend shapes at runtime instead of baking them per frame. That last part is what makes it a fit: it means generated and streamed motion works as well as recorded motion, with no bake step.

Four steps, in the order they are being built:

The order is deliberate. Step 1 reuses the retarget engine that already works on UE5, Fortnite, Mixamo and Rigify, so it is the least new machinery for the most result, and it is the thing the other three stand on. Step 2 is a small writer once step 1 defines the joint mapping. Step 3 is the one worth having — steering a photoreal character in Unreal from a text prompt, with nothing baked — but it needs 1 and 2 first.

Step 3: the motion stream

Turn on Stream to Unreal in Live Path and each window is pushed over TCP as it is generated, to anything listening on the port. One JSON object per line, so a receiver is a socket and json.loads:

{"type":"hello","protocol":1,"skeleton":"cskel27",
 "joints":["Hips",...],"parents":[null,0,...],
 "rest":[[x,y,z],...],"fps":20.0,"up":"y"}

{"type":"frame","index":0,"time":0.0,
 "translation":[x,y,z],"pose":[[rx,ry,rz],...]}

pose is one axis-angle rotation per joint relative to the rest pose, in the order joints gives — enough to run forward kinematics. Y is up. A late joiner gets the hello and then whatever comes next; a listener that leaves is dropped without disturbing the generation.

Verified end to end: 120 frames of a live take, in order, and running the kinematics from the stream puts every joint within 2 µm of where the rig is standing in Blender.

The Unreal plugin

MotionForgeLiveLink lives in the MetaHuman_FAB58 project's Plugins folder. It adds MotionForge to Live Link's Add Source list: give it 127.0.0.1:9560, and the take appears as an animation subject while Blender is still generating it.

It converts on the way in — metres to centimetres, Y-up right-handed to Z-up left-handed — and publishes bones parent-relative, which is what Live Link expects. It reconnects on its own, so the order you start Blender and Unreal in does not matter.

From there: a Live Link Pose node in an Anim Blueprint, then the SMPL plugin's SMPL Pose Correctives node after it. The correctives are computed from whatever pose arrives, so a generated take deforms the body exactly as a recorded one would.

The stream carries ARDY's own joint names (Hips, Spine, LeftUpLeg…), not SMPL-X's. Use a Live Link Remap Asset if your target skeleton names differ.

Verified in Unreal, on UE 5.8:

LogMotionForge: Subject published: skeleton 'cskel27', 27 joints, 20.0 fps.
LogMotionForge: First frame pushed to Live Link.

A subject reading Subject Invalid before the first frame is normal - the skeleton arrives first and the subject only becomes valid once frames follow. It goes back to invalid when a take ends, for the same reason.

The skeleton to receive on

Live Link does not create anything in Unreal - it drives a Skeletal Mesh that is already there. So you need a skeleton, and its bones have to match what the stream sends.

Export Rig for Unreal (FBX), next to the stream settings, writes one built for the job. Import it in Unreal and it lines up with no remapping at all.

It is not the rig you see in Blender. Live Link writes each streamed transform straight into a bone's local slot, so the receiving skeleton has to share ARDY's convention: every joint's rest orientation is the identity. The Blender rig aims each bone at its child to be readable, which is up to 128 degrees away from that - every rotation would land twisted by the difference. The exported one has every bone pointing the same way. It looks like a bundle of sticks, and that is the point: it is a driver.

From there, Unreal's IK Retargeter moves the motion onto the character you actually want - a MetaHuman, an SMPL-X body - which is the same route BEDLAM uses.

Wiring it up

1. Import the FBX. Unreal makes a Skeletal Mesh and a Skeleton.
2. Right-click the Skeleton, Create Animation Blueprint.
3. In the AnimGraph: Live Link Pose (Subject: MotionForge) into Output Pose. Add the SMPL plugin's SMPL Pose Correctives node between them when you are driving an SMPL body.
4. Drop the mesh in the level and set its Anim Class to that Blueprint.

Nothing has watched a character move yet. The stream reaches Live Link and the skeleton is built to match it, but how the motion looks in Unreal is not confirmed.

Step 4: standing on the same floor

ARDY generates on one fixed skeleton. Retargeting already scaled the stride to the target's legs, but nothing put its feet on the ground, so a body built taller or shorter hovered above the floor or sank into it.

Match Floor Contact in the Retarget panel fixes that. Each frame, the target is raised or lowered so its lowest joint sits where the source's does, scaled to its own build. A planted foot lands on the floor; a jump is still a jump.

Measured on bodies built at 0.7x and 1.4x: a planted foot went from 45 mm off the floor to 0.0 mm, with nothing sinking through, and the take kept both its travel and its rise and fall.

True shape-conditioned generation — the body's build changing how the model moves in the first place — would need ARDY retrained with shape as an input, which is not something this add-on can do. What is achievable, and what this is, is making the motion correct for the body it lands on.

What you need. SMPL-X model files are licensed separately: free for academic use from the project page, commercial through Meshcapade. They cannot ship with this add-on.

What will not work yet. SMPL-X wants 30 finger joints. The released ARDY model has one thumb joint per hand, so hands stay in their neutral pose. The 77-joint SOMA skeleton has full fingers, but NVIDIA has not published it.

One take, several characters

Set the characters up before you generate, and every take lands on all of them at once.

In the retarget panel, under Share With Characters: select a character, press +, pick its rig type if Auto guesses wrong. Add two or three. From then on, Generate — and Bake, after a live take — copies the motion onto every one.

• Fill Characters After Generating — untick to stop it happening automatically.
• Fill Characters — do it now, for a take that is already made.
• The tick box beside each character skips it without removing it.

Why not during a live take? Because it does not fit. A retarget costs about 55 ms a frame per character, measured: one character needs 2197 ms for a 40-frame window, two 4598 ms, three 6787 ms — and a live window has 2000 ms to be ready in. So the copy happens once a take exists, which is also when it can be done in one pass instead of forty.

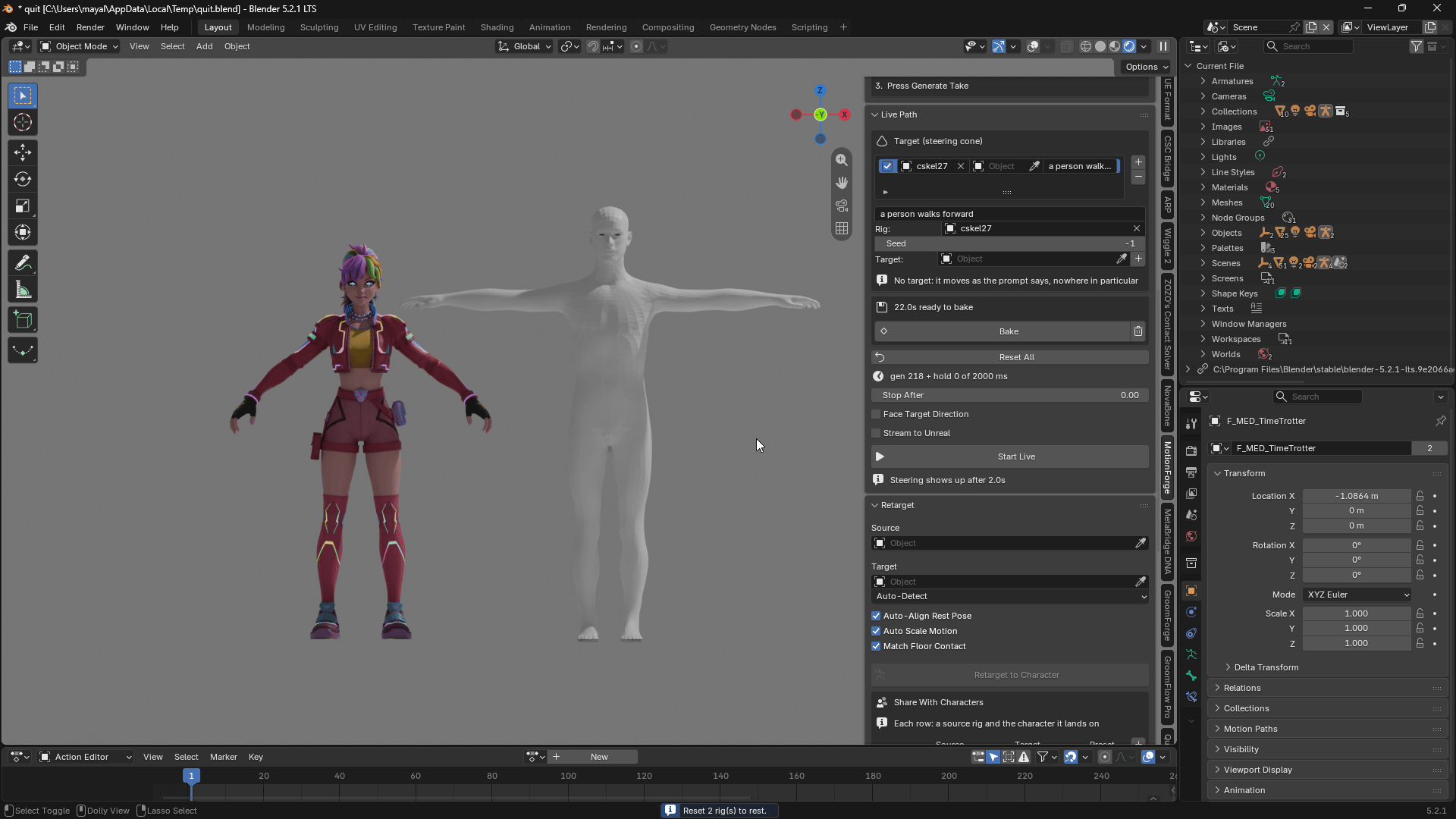

Moving it onto your own character

Open Retarget, pick your armature under Target, choose its family (UE5, Fortnite, MetaHuman, Mixamo, Rigify, TF2 Trifecta, SMPL-X…) and press Retarget. Auto-Detect usually gets it right on its own.

Verified on Unreal Engine 5 mannequins, Fortnite exports, Mixamo rigs, Rigify and SMPL-X bodies, and on the Scout, Soldier, Heavy, Medic, Sniper and Spy in both their Legacy and New Trifecta rigs — including rigs built at centimetre scale.

SMPL-X / SMPL-H. Build a body with Meshcapade's Blender add-on, pick it as the Target, and generate. Fingers stay in their neutral pose — the released ARDY model has one thumb joint per hand and nothing else.

Once the motion is on an SMPL body, Export SMPL (.smpl) appears under the Retarget button. That file is the pose parameters themselves rather than a baked skeleton, so it opens in AMASS, BEDLAM and Meshcapade's tools, and it is what Perceiving Systems' Unreal plugin wants. Body shape is read from the body's own shape keys if the Meshcapade add-on left them there.

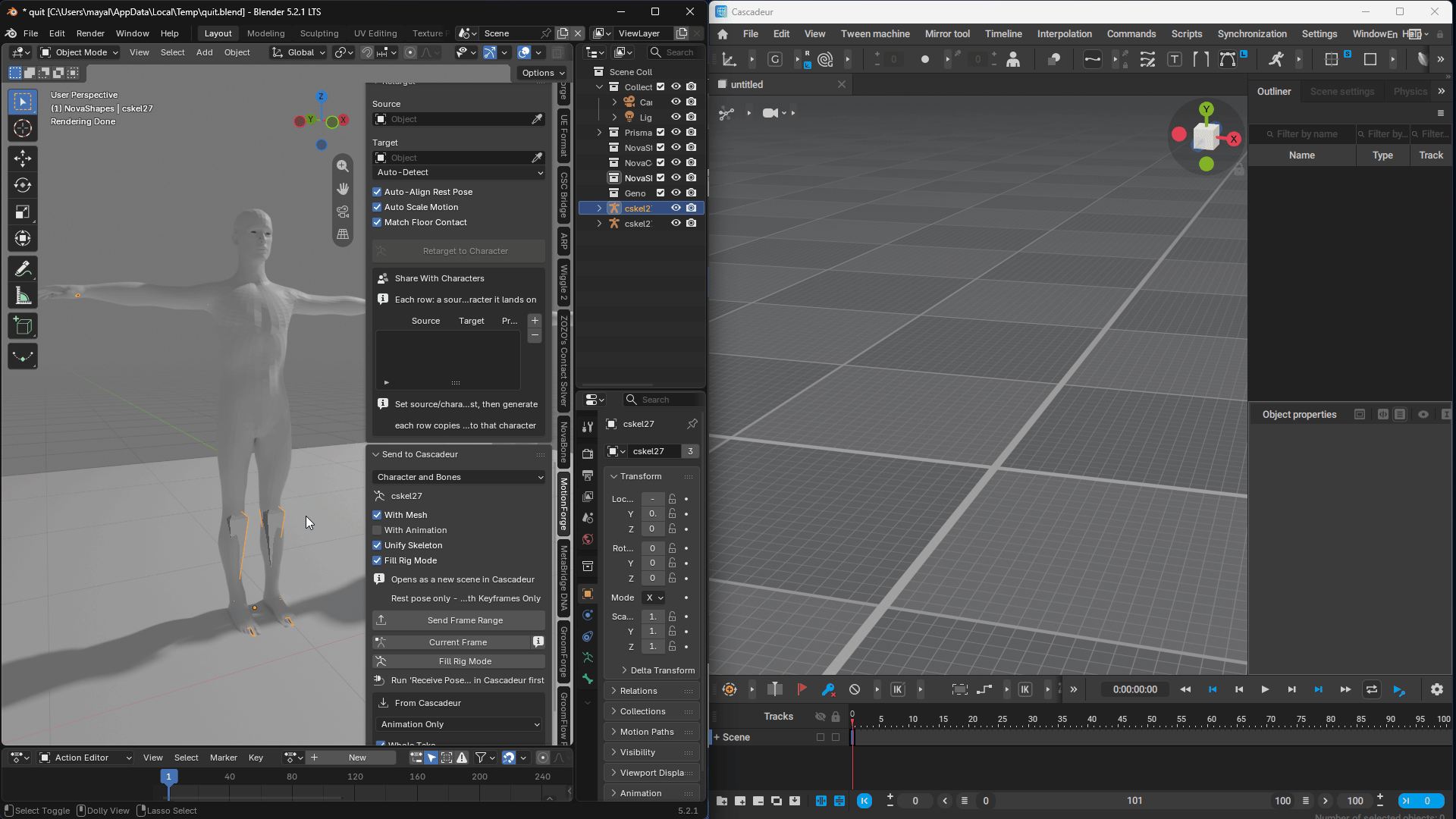

Sending it to Cascadeur

Motion made here can go straight onto a character in Cascadeur. No FBX to export by hand, no import dialog.

Turn Cascadeur's side on first. In Cascadeur: Animation Scripts → Receive Poses (Blender). It starts listening on 127.0.0.1:9564; running it again stops it. This needs the Cascadeur plug-in installed.

The order matters

1. Send Character — sends this rig, its meshes and its animation. Cascadeur opens it in a tab of its own.
2. Send Frame Range (Keyframes Only) — sends new motion onto the character that is now there.

Do it the other way round and the keyframes have nothing to land on.

Send Character again after restarting Cascadeur. When the character arrives, Cascadeur records the orientation every joint came in at, and the keyframes are measured against that record. Restarting Cascadeur loses it, and keyframes sent afterwards will be turned the wrong way — quietly, with nothing reporting an error.

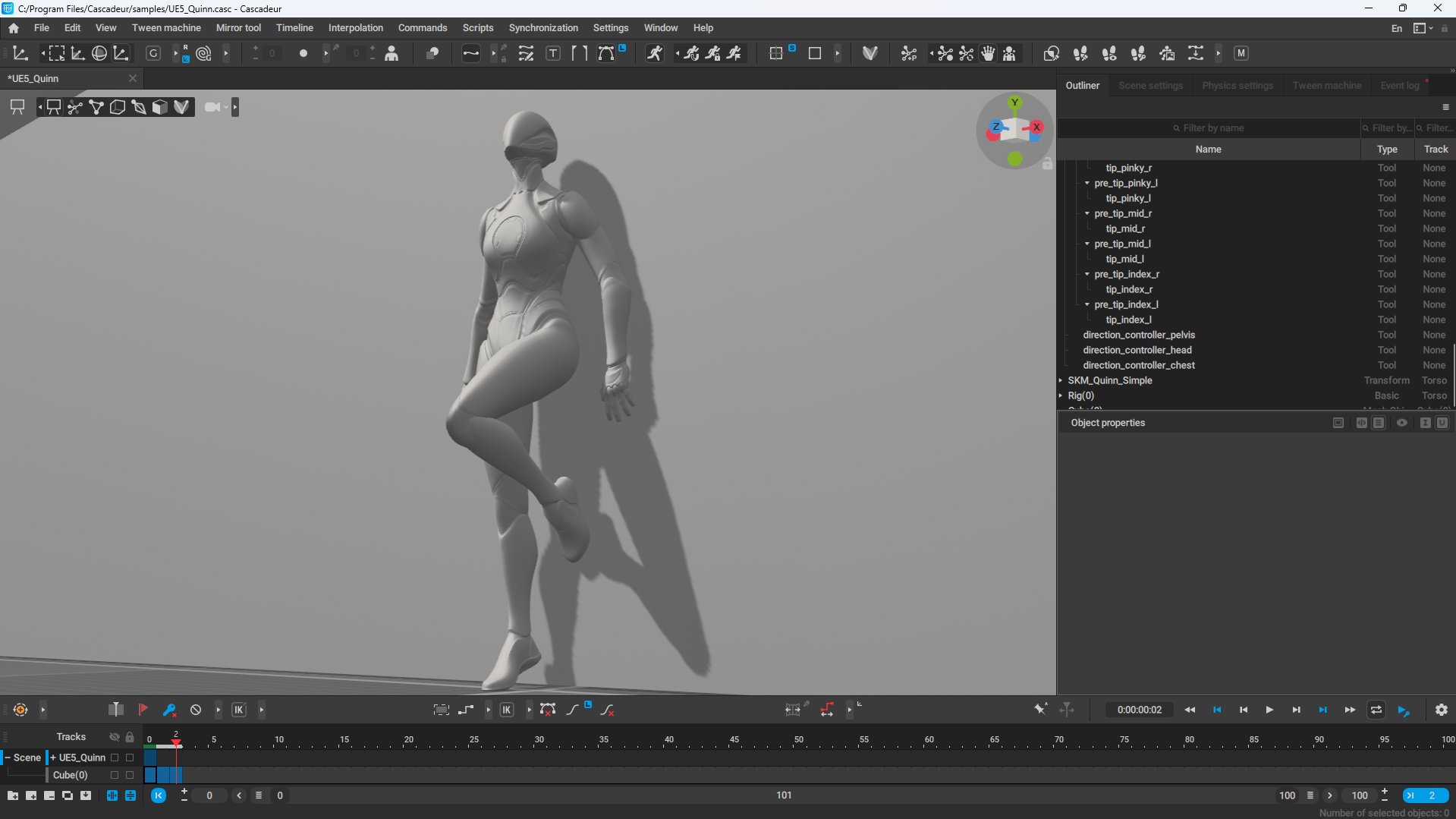

Sending onto Cascadeur's own character

You do not have to send a character first. If Cascadeur already has one of its own open, switch to Keyframes Only and send: bones are matched by role, so a UE5, Mixamo, Rigify or SMPL-X rig is translated into Cascadeur's own joint names on the way across — pelvis lands on Hips, upperarm_l on LeftArm.

What actually crosses

A turn, not an orientation. Each bone's rotation goes over measured from its own rest pose, and Cascadeur folds its character's rest back in. Sending the world orientation instead only works when both skeletons happen to rest the same way, which they never do — Blender lays a bone's Y down its length, and Cascadeur's joints rest however the character was built.

Joint positions only when it is the same skeleton. Onto a different character only the root's position is sent and the rotations carry the pose, so Cascadeur keeps its own bone lengths. Sending every joint's position drags that character's bones to this rig's proportions, and the mesh — still bound to the bones it was skinned to — breaks at the elbows and knees.

Measured, onto a character sent from here: joint positions match to 0.0000 cm and rotations to 0.000003. Onto a different character the pose is fitted rather than copied, and the character keeps its own proportions.

Speed

A range crosses in one write. Forty frames of twenty-seven joints land in 0.09 s, so there is nothing to gain from sending frame by frame — a write costs about the same whether it carries one pose or a thousand.

Rigs built out of several skeletons

Some rigs are not one skeleton. A Rigify-built character — the Team Fortress 2 Trifecta rigs are the ones you are most likely to meet — keeps the bones that move the mesh apart from the bones the hat, the pouch and the weapon hang off. Sent as they are, the character arrives in Cascadeur in pieces: the body moves and the props stay where they were.

Unify Skeleton merges them into one before the character crosses. Leave it on. Your rig is not touched — the copy is made, sent and thrown away.

• The hat stays on the head, the pouch on the belt, the weapon in the hand.
• Fingers, toes and twist bones follow the limb they belong to.
• Both Trifecta rigs are recognised on sight, and so are their fingers.

Filling Cascadeur's Rig Mode

Cascadeur's Quick Rigging Tool guesses which joint is which from their names, and a character whose bones are not named the way it expects gets almost nothing — a TF2 mercenary filled three fields out of twenty-one.

Fill Rig Mode hands it the answer instead. It runs on its own with Send Character, and there is a button to do it again later.

Open the Quick Rigging Tool afterwards and look the joints over before you build the rig. Cascadeur keeps the fields it has and quietly drops the rest; anything it drops still follows the joint above it.

Bringing it back

Receive from Cascadeur brings the work home. Pick the armature to receive onto first.

Animation Only keys onto the rig you already have. Mesh + Animation brings the character back as new objects.

On a rig that needed Unify Skeleton to get there, the animation lands on the controls you normally animate with, not on the deform bones.

Timing

Cascadeur runs on its own frame rate, which is usually not the one this scene is set to. The same motion can come back as a different number of frames.

Match Timing needs a Send Character from here to compare against; without one the take lands at Cascadeur's own frame count and says so.

Setting both programs to the same frame rate is exact. Anything else is interpolated, which is close but not the same thing.

Settings worth knowing

Models

Where the model weights live

About 19 GB in total — 15 GB of it the text encoder, the rest the motion models. They are downloaded the first time you connect and kept forever after.

Checkpoints in the add-on preferences decides where. Set it and everything is downloaded and read there. Leave it empty and Hugging Face keeps them in your user profile, under C:\Users\<you>\.cache\huggingface.

Worth setting if your C: drive is tight, or if you want the weights beside the project rather than hidden in a profile folder. Changing it later does not move what has already been downloaded — copy the models--* folders across yourself, or the next connect fetches 19 GB again.

The shared text encoder

Reading your prompt needs a 14 GB language model. It is loaded once and kept in a process of its own, so connecting takes about 5 seconds — including when you switch models or reconnect. Connect starts it for you the first time. Leave it running while you work; Stop in the same box frees the memory.

It serves Blender only. The browser demo speaks a different protocol and always loads its own copy.

Why the text encoder runs on the CPU

Two models are involved, and they want very different things.

The motion model has to be on the graphics card — that is what makes a window take 130 ms instead of seconds. The text encoder does not: it runs once per take, and a second on the CPU costs you nothing you can feel.

On a 16 GB card they do not both fit. Putting the 14 GB encoder there leaves the motion model without room, and it starts spilling — shuffling data on and off the card to keep working. Nothing fails, everything just crawls. Measured on an RTX 5080:

A window plays for 2000 ms, so the left column cannot keep up with playback at all. That is the difference between live steering working and not.

Text Encoder On lets you choose:

On the CPU the encoder never touches your graphics card at all, not even while loading, so you can have Unreal or a second Blender open while it starts.

In a browser instead

start_web.bat opens NVIDIA's own interactive demo at http://localhost:2333. It is a different way to work — a timeline of prompts you scrub through, with no Blender involved.

Run one at a time. The demo loads its own copy of the 14 GB text encoder, which on a 16 GB card leaves nothing for anything else. Disconnect in Blender, and stop the shared encoder, before starting it — otherwise the demo runs out of memory while loading and closes.

start_web.bat launches it with four things fixed. None of them edit ardy/, so updates to NVIDIA's code still apply cleanly.

The timeline bar can be moved. Two things were in the way. The demo re-ranged the bar to a 20-frame trailing window on every frame change — twenty times a second — which snapped the view back to the playhead and undid any scrolling as fast as you did it. And the left mouse button is spoken for: on the header it scrubs the playhead, on a track it makes keyframes, so click-dragging the view just moved the frame instead.

Middle-button drag is added by patching viser's own web client, which lives in the virtual environment rather than in anything we ship. install.bat applies it and rebuilds. To undo it:

.venv\Scripts\python.exe motionforge\patch_timeline.py --revert

Text tab — the whole take is built here, beside the prompt it is made from. Making motion and watching it are separate, as they are in Blender.

• Prompt and Ends at Frame — what the character does, and the frame it runs to. The next prompt starts on the frame after.
• Add to Take — queue it. Add as many as you like; they are generated one after another, the way takes chain in Blender. The list shows the frame range each one covers.
• Generate — make the queued prompts in order, then stop. Nothing plays; the playhead returns to the first frame when it is done. With an empty list it just uses the Prompt box.
• Examples — the stock demo's preset prompts, which it called "Prompt List" even though pressing one replaced the prompt and regenerated on the spot. Here they only fill the Prompt box.
• Use This Prompt From Here — change the prompt at the playhead without queueing anything, for steering a take by hand.

Boundaries land on the frame you asked for. Queue walks to 30, runs to 100 and stops to 200 and the take is 201 frames, changing on 31 and 101 — not on whatever multiple of the generation window came nearest.

Generate only makes what is missing: add a fourth prompt and the first three are left alone, edit the second and everything from it onward is rebuilt. - New Motion — empty the take and go back to frame 0. It generates nothing: the point is to start over, so add your prompts and press Generate. - Clear Take List — empty the queue, leaving the take alone.

Playback tab only plays:

• Play — replay what has been generated. It does not generate anything.
• Loop Playback — start again at the first frame instead of stopping.
• Keep Generating While Playing — off. The stock demo has this on with no way to turn it off, which is why Play there generates forever and you can never simply watch what you have. Tick it if you want that back.

So the usual round is: New Motion, add two or three prompts, Generate, Play to look at it, Export BVH to keep it.

Under Frame Index:

• First Frame / Last Frame
• Start Frame, End Frame, Apply Range — set exactly what the bar shows
• Visible Frames — zoom. Smaller is zoomed in
• Fit Whole Take — put everything back on the bar

The Frame Index box also accepts any frame; the stock one stops at 199 however long the take is.

Files tab:

• Choose Mesh — a real file picker, reading from your computer. The IO tab's "Load 3D Mesh" only takes a path on the machine running the server. Set Scale first, or change it and press Apply Scale / Transform to reload the same file without picking it again. A room modelled in centimetres needs 0.01 to sit right beside a character in metres.
• Export BVH — the skeleton and its animation, in a file Blender, Maya, MotionBuilder and Unreal all import. Scale 1.0 writes metres; 100 for tools that expect centimetres, 0.01 for a rig that arrives far too big.

There is no FBX export. FBX needs Autodesk's SDK, which is not part of this install and cannot be redistributed with it. Import the BVH into Blender and export FBX from there — or generate in Blender to begin with, where the rig is already native.

Restart — clearing the motion without reloading the page — already exists, under the Generate tab.

When something is wrong

"ARDY is still loading the model" — the engine starts before it is ready. Wait for Ready.

"This bridge was started without a text encoder" — Skip Text Encoder is ticked. Untick it and reconnect.

Connecting fails right away — check that ARDY Python in the add-on preferences points at a real .venv\Scripts\python.exe.

The character walks on the spot — that is the model, not a bug. Some seeds produce a walk that barely travels. Change the seed, or ask for something with more intent: "a person runs forward quickly".

Pose keys seem ignored — make sure Reduce Foot Skating is on. Note that the G1 robot skips that pass entirely, so poses only guide it there.

The retarget looks broken — check the family under Target matches the rig you picked.

"Cascadeur is not listening on 127.0.0.1:9564" — its side is off. In Cascadeur: Animation Scripts → Receive Poses (Blender).

Keyframes arrive but the character is turned the wrong way — Cascadeur was restarted after the character was sent. It only knows how to place the motion if it still holds the record it made when the character arrived. Press Send Character again, then send the keyframes.

Keyframes go nowhere and nothing says why — the joint names sent do not match anything Cascadeur has open. Check the line above the buttons: it says how many bones were matched and under which naming.

Limbs bend oddly on Cascadeur's own character — expected to a degree. Cascadeur keeps its character's bone lengths, so a rig with different proportions is fitted rather than copied.

Live stutters, or one window takes seconds — read the second line of the Live panel, gen X + hold Y of 2000 ms. If gen is in the thousands, the text encoder is on your graphics card crowding out the motion model; set Text Encoder On to Auto or CPU and reconnect. See Why the text encoder runs on the CPU.

The panel says Connecting and the button is greyed out — a session that was closed mid-connect. Opening a file clears it; so does re-enabling the add-on.

Characters ignore their targets and walk off on their own headings — fixed. If you see it, the add-on is an older copy.

Windows warns about low memory, or Python crashes while connecting — two copies of the 14 GB text encoder are loaded at once. Only one is ever needed: press Stop under the text encoder, close any other Blender running MotionForge, and connect again.

For anything else, Blender's system console (Window ▸ Toggle System Console) carries the engine's own messages.
